HITACHI ZX70-6A Mini excavator Modified short arm for tunnel construction

EXCAVATOR TUNNEL ARM & BOOM

This is a small excavator tunnel arm, also called a flat excavation arm.

Advantages of construction: construction operations can be carried out in a small space, the original excavator mechanical arm can be replaced and shortened, and the construction stroke of the oil cylinder can be changed.

It can avoid touching the oil cylinder and oil pipe during construction in the basement or tunnel space.

 ▎CONFIGURATION SITUATION

 ▎STEEL CUTTING

The incision is flat to ensure the accuracy of cutting steel plates

 ▎GROOVE WELDING

Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

Orbital welding machines are used for welding, and manual strengthening and welding are performed at corners and reinforcements.

Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.

Also the inside have strength plate make it more stronger.

 ▎LARGE BORING MACHINE -- BUTT BORING

The processing efficiency is higher, the precision is better, and the product quality and labor efficiency are greatly improved.

 ▎SURFACE TREATMENT OF WORKPIECE--SHOT BLAST

The small steel balls of the large shot blasting machine are used to hit the surface of the workpiece to remove the rust and small impurities on the surface of the steel plate, so that the surface of the workpiece presents the original metallic luster and increases the adhesion of the primer.

 ▎PRIMER AND PAINT TREATMENTS

Spray with the same paint as the brand excavator factory to ensure consistent color.

 ▎HIGH PRESSURE HARD PIPE & PIPELINE BENDING TREATMENT

1. Friction welded flange and oil cylinder - use machine high-speed friction welding, which has higher efficiency and avoids artificial false welding and air bubbles.

2. Automatic pipe bending machine - use numerical control to control the degree of bending of the pipeline, and automatically bend the seamless steel pipe, with higher precision.

 ▎PAINT / PACKAGING / TRANSPORTATION SERVICES

1.The color paint is consistent with the brand excavator factory (customizable color), using high-quality paint to make the product more delicate and beautiful.

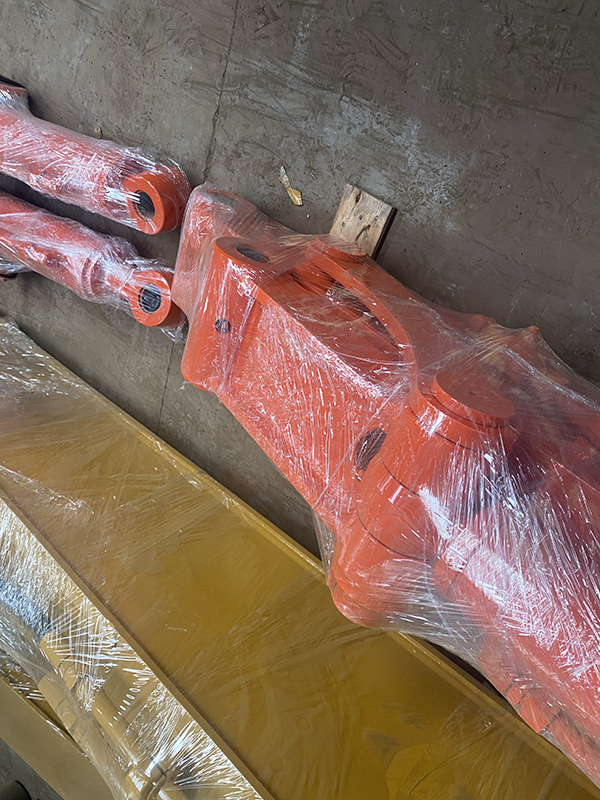

2. We use stretch film to package the product. (Three-plywood wooden frame needs to be noted)

3. We have cooperated with many shipping companies in China for many years,and the transportation service and efficiency are very good. (Recommend FOB/CIF/CNF)

 ▎CERTIFICATTES & FACTORY HISTORY

We were originally affiliated to a Singaporean private factory in China. We have always only served the excavator industry and have a lot of data and manufacturing experience. Provide professional excavator accessories for dealers in many countries around the world.We insist on quality first, and deal with details so that brand dealers appoint us as partners.

（Information and photos are not displayed to protect the privacy of customers）

▎F A Q

1. Q: Are you a trader or manufacturer?
A: We are the manufacturer in China.

2. Q: Can you supply customize service?
A: Yes, we can customize the undercarriage according to your demand.

3. Q: How is your products?
A: We have professional engineers and experienced team, and with many years experience in this field, our product are widly welcomed by many customers.

4. Q: How is your price?
A: Our price is based on the quality, we give the competitive price to every customer! Here you can own Europe quality on Chinese price!

5. Q: How is your after-sale service?
A: We can give you one years after sales warranty, and any quality problem caused by manufacturing defects can be unconditionally interchanged into a new one.

6. Q: How to place order?
A: 1 set
